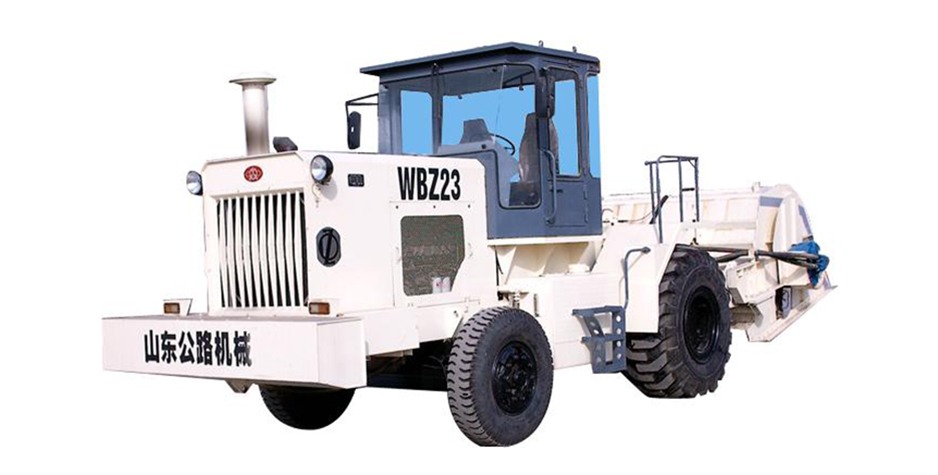

WBZ23.WBY210 Stabilized Soil Mixer is used for highway, road ,airport ,quay and square for mix-stiring on the worksite firm-materials of base-layer and surface-layer.

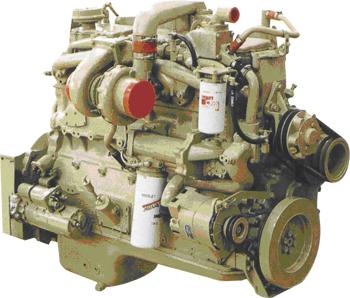

发动机

●采用康明斯N系列涡轮增压发动机

●结构紧凑、噪声小、易于维修、废气排放低等优点

●整机功率储备大、可靠性高

The Engine

●Adopt Cummins N series turbo engine.

●Compact structure , small yawp, easy service, and low exhaust emission.

●A high hive power as well as high reliability.

液压系统

●行走采用PV23变量泵与MF23定量马达组成的闭式系统

●工作装置采用A4VG250变量泵与GM5A1600定量马达组成的闭式系统.

●传动效率高、噪声低，可实现功率自动分配

●结构简单、维修方便

The hydraulic system

●Driving is a close system of PV23 variable pump and MF23 ration motor .

●Working is a close system of A4VG250 variable pump and GM5A1600 ration.

●High driving efficiency, small yawp,realize power self-distribute.

●Simpleness structure,convenience service.

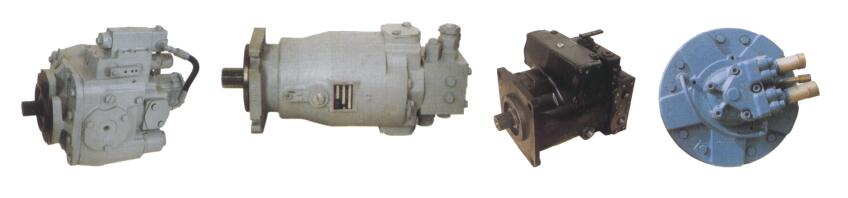

The hydraulic unit

液压件

●液压泵、液压马达采用国际知名公司进口元件

●效率高、性能稳定、使用寿命长

The hydraulic unit

●Adopt import hydraulic pump, hydraulic motor .

●High efficiency, stabilization capability and a long life-span.

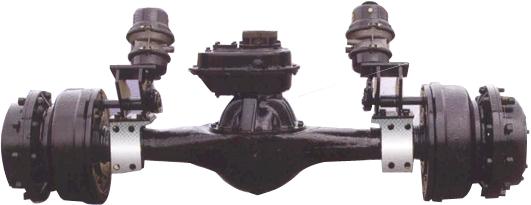

变速箱与驱动桥

●采用两速变速箱，低速用于作业和爬坡，高速用于行驶

●驱动桥采用SOMA刚性驱动桥

●机构紧凑、质量可靠

The gear-box and the dirve bridge

●Adopt double-speed gear-box, lowspeed is used for working and climbing,highspeed is used for driving

●The dirve bridge adopt SOMA rigidity dirve bridge

●Compact structure,credibility quality

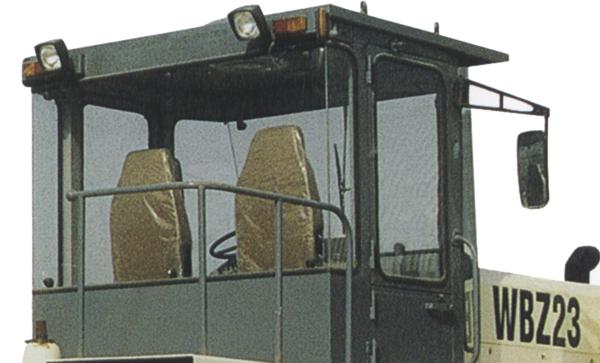

驾驶室

●全封闭式驾驶室

●宽敞明亮、视野开阔、密闭性好，司机耳边噪声低

●可另配置空调

The cab

●The whole closed -cab

●Open and brightness，widen view , well obturation and low yawp

●Additional collocate air-condition

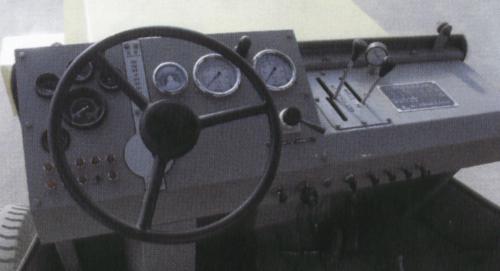

操作系统

●人性化设计，做大限度降低驾驶疲劳

●操纵轻便、灵活、安全可靠

Operating system

●Humannss design,reduce tiredness

●Handiness operatinting,agility and safe

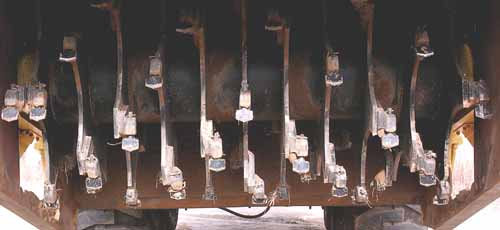

工作装置

●转子采用逆向旋转，拌和质量高

●拌刀采用锤式组合拌刀，硬度高、寿命长，更换方便

●更换铣刨装置后可对旧路面、路基进行铣刨作业

The working system

●Rotor adopt a converse circumgyrate,high quality mix

●Max-falchion adopt hammer-type combination ,high rididity, a long life-span. and convenience replacing.

●After replacing mill and dig setting, may work for old road surface and roadbed

主要技术参数TECHNICAL SPECIFICATIONS
型　　号 Model		WBZ23
整机质量（kg） Total Weight		15200
拌和宽度（mm） Mixing width		2300
拌和深度（mm） Mixing depth		400
行走速度（km/h）Running speed		0～23
工作速度（km/h） Working speed		0～1.8
转　　子 Rotor	直径（mm）Diameter	1306
	转速（r/min）Rotor speed	160
	旋向Direction of rotate	逆向converse
爬坡能力（%）Grade ability		30
柴油机　型号 Diesel engine model 功率（kW） Power		NTA855-C400 298
外形尺寸长×宽 ×高（mm）Total size(L×B×H)		8800×3360×3420
